What is a XLR CABLE?
XLR cables, developed by Cannon Electric (with "X," "L," and "R" denoting connector types), feature three-pin connectors widely used in professional audio. They ensure balanced signal transmission, reducing noise interference, and are essential in studios and live sound setups for microphones, speakers, and equipment connections. Their robust design and locking mechanism make them reliable for high-quality audio performance. In the early days, Cannon's primary goal in developing XLR cables and connectors was to create durable, military-grade connections for troops and aircraft. The original XLR design featured a circular housing with a secure latch mechanism, specifically engineered to withstand harsh battlefield conditions. This robust construction ensured reliable performance even in demanding environments, making it ideal for military applications before being adopted by the audio industry.

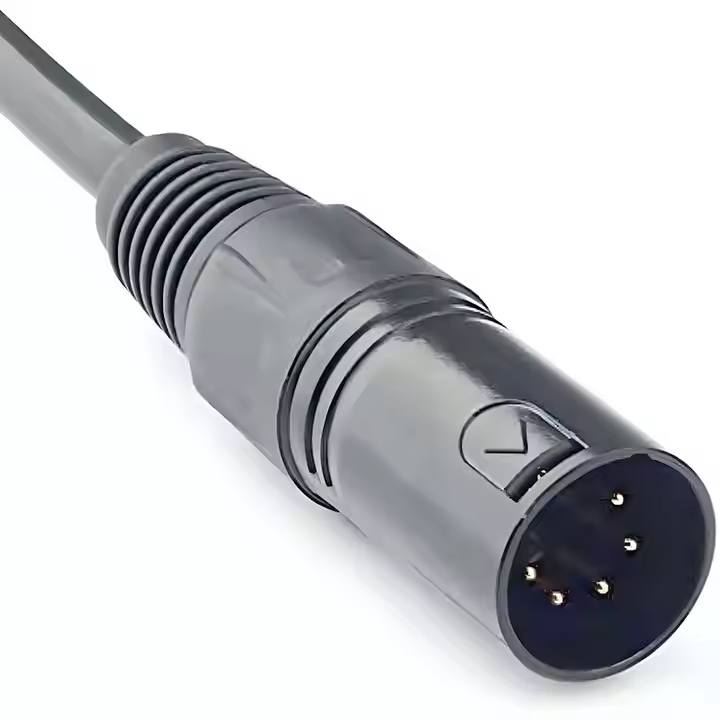

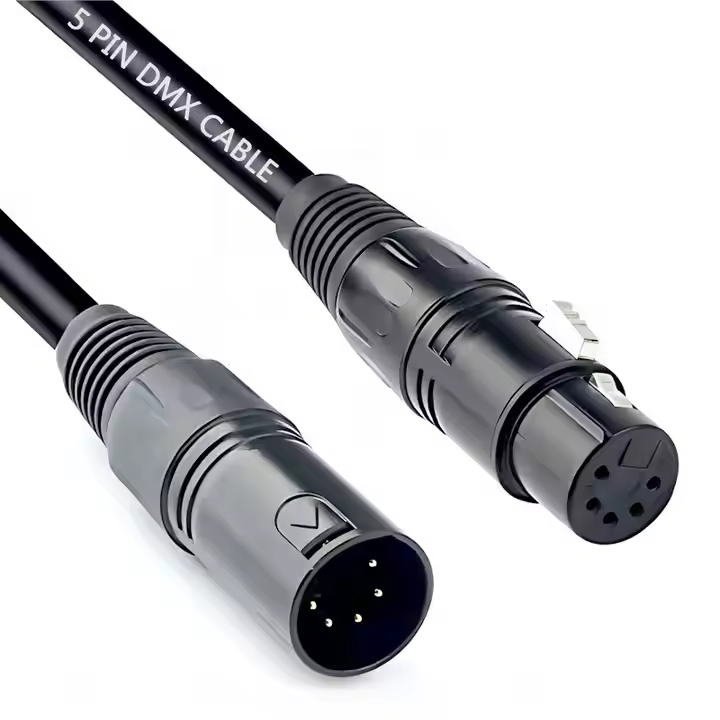

Types of XLR Cables

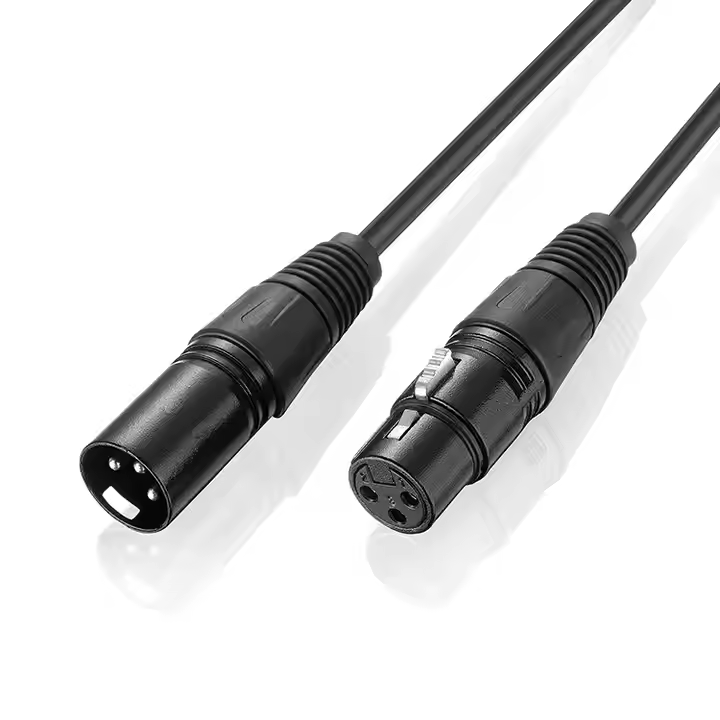

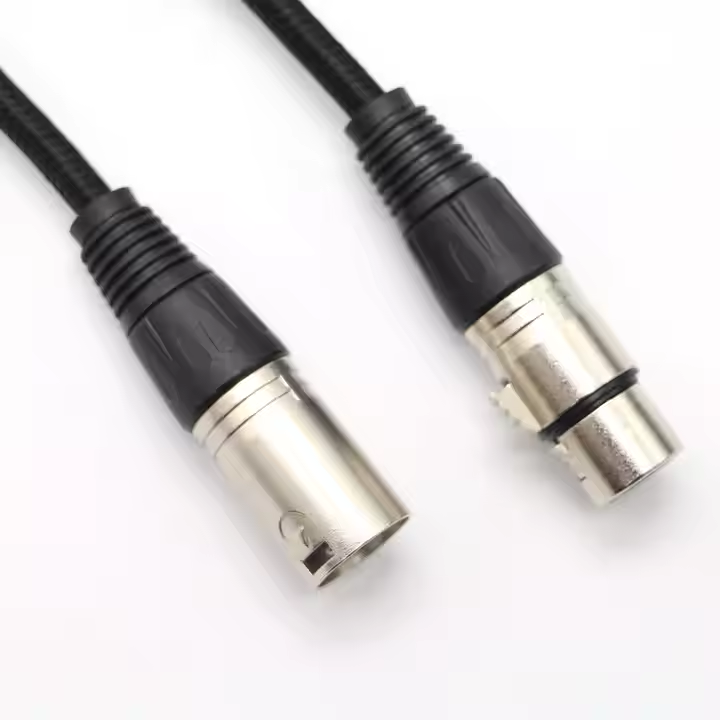

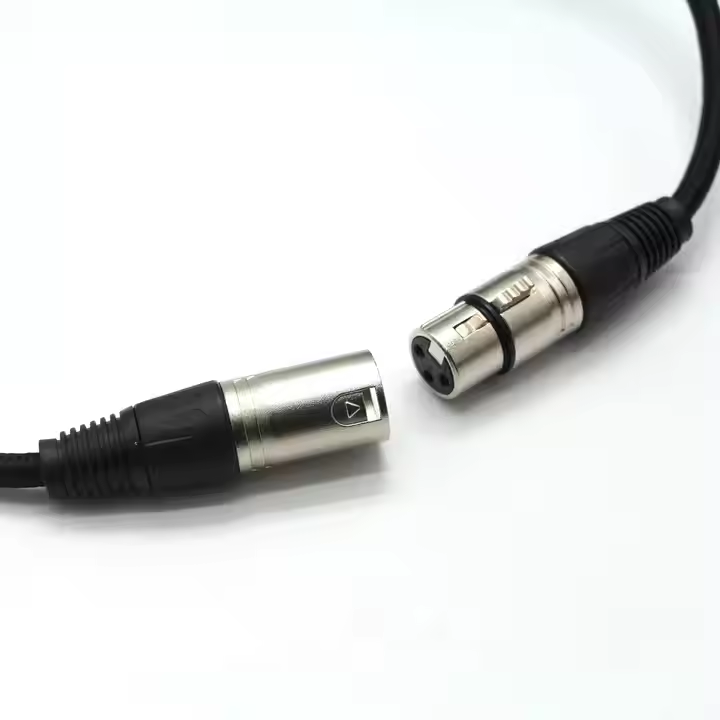

3-Pin XLR Cable
The 3-pin XLR connector is widely regarded as the industry standard in professional audio due to its universal compatibility with most microphones. These versatile cables are commonly used to connect microphones to speakers, amplifiers, mixers, and audio interfaces. A key advantage of 3-pin XLR cables is their ability to transmit phantom power, which is essential for operating condenser microphones. The +48V DC phantom power is efficiently delivered through pins 2 and 3, seamlessly integrating with the audio signals without causing any interference.
Each XLR cable features three distinct contact points, each serving a specific purpose: Pin 1 is designated for the ground wire, which shields and protects the signal wires; Pin 2 carries the negative (inverted) audio signal; and Pin 3 transmits the positive (non-inverted) audio signal. This balanced design ensures clean, noise-free audio transmission, making 3-pin XLR cables a reliable choice for professional audio applications.
7-Pin XLR Cable

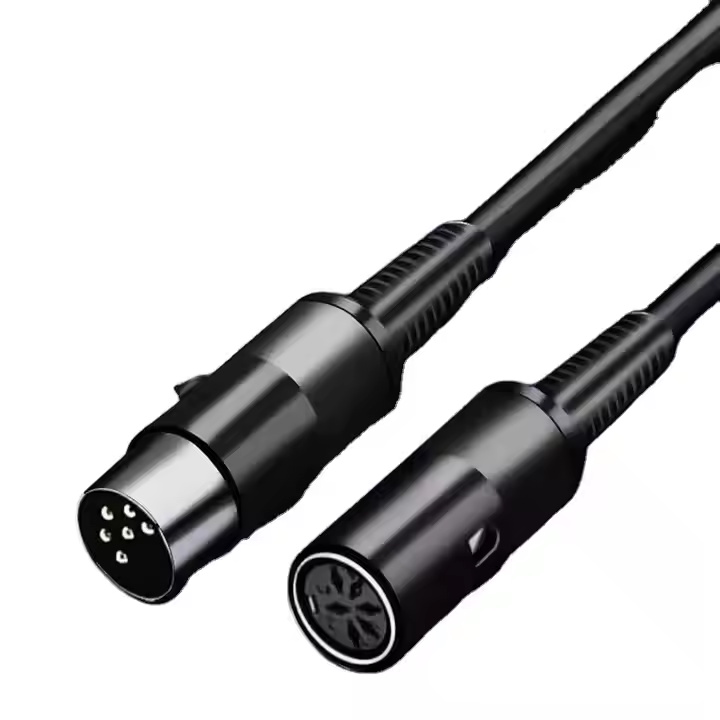

7-pin cables are commonly used in professional audio setups, particularly for condenser microphones that require multiple signal paths. These cables typically consist of two dedicated wires for transmitting audio signals, along with additional conductors for DC voltage supply, heater circuits (in tube microphones), and shielding to minimize interference. The 7-pin XLR configuration provides a robust connection for advanced microphone systems, ensuring stable power delivery and high-quality audio transmission.
However, despite their functionality, 7-pin XLR cables are less commonly preferred compared to the standard 3-pin XLR. The 3-pin XLR remains the industry standard for most audio connections due to its simplicity, widespread compatibility, and ease of use. While 7-pin cables offer specialized support for certain high-end microphones, their niche application limits their demand in general audio environments.
Benefits of XLR Cables
Superior Durability
XLR cables are engineered for exceptional durability, featuring robust connectors designed to withstand rigorous use. Their reinforced construction makes them far more resistant to physical stress compared to standard audio cables. The connectors endure frequent plugging and unplugging without compromising performance, making them ideal for demanding environments like recording studios and live stages where equipment is constantly reconfigured. This enhanced longevity translates to cost savings, as XLR cables require fewer replacements over time.
Versatile Compatibility
XLR cables offer unparalleled versatility across audio applications. They seamlessly integrate with a wide array of professional audio equipment, including microphones, mixers, amplifiers, and musical instruments. This universal compatibility ensures they can adapt to virtually any audio setup, from studio recording to live performances. Additionally, XLR cables are available in multiple lengths, providing flexibility to customize cable runs based on specific spatial requirements.
Exceptional Noise Immunity
A standout feature of XLR cables is their superior noise rejection capability. As balanced cables, they effectively cancel out electromagnetic interference (EMI) and radio frequency interference (RFI), delivering pristine audio signals even in electrically noisy environments. This makes them indispensable for critical applications such as studio recordings and live sound reinforcement, where signal clarity is paramount. By minimizing unwanted noise, XLR cables ensure consistent, high-fidelity audio transmission.
