Installing DIN connector cables correctly is essential for ensuring reliable electrical connections in industrial and electronic applications. However, many technicians and engineers make avoidable mistakes that can compromise performance and longevity. This guide highlights the most common errors and offers tips to prevent them.

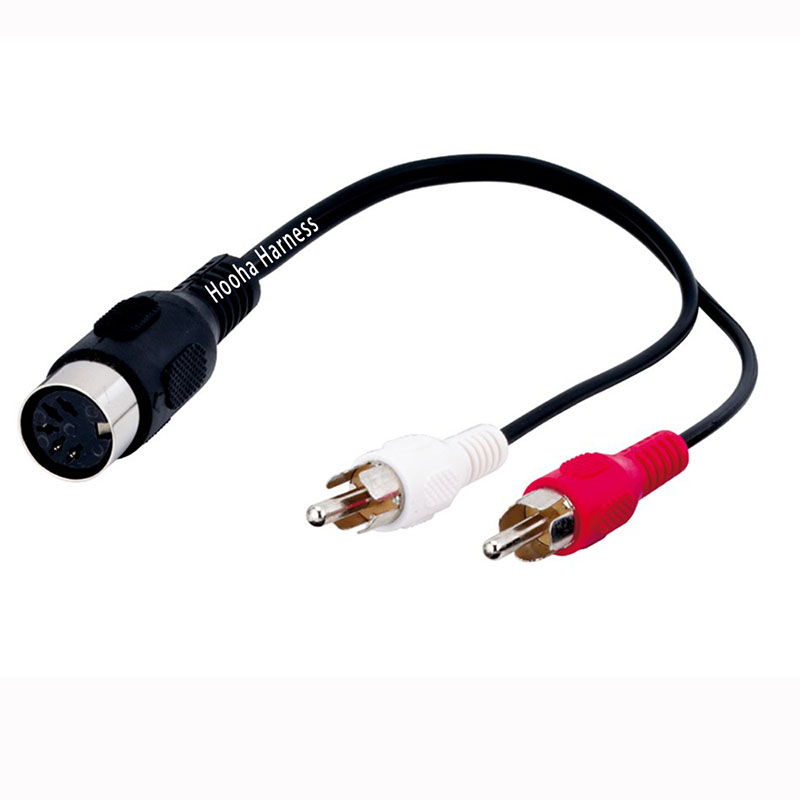

One frequent mistake is using the wrong type of custom DIN cables for a specific application. Each DIN cable has its own current rating, shielding, and connector type. Choosing an incompatible cable can lead to signal loss, overheating, or even equipment failure. Before installation, verify the specifications of the DIN connector cables to ensure they match the device requirements.
Another common issue is improper handling during the DIN cable assembly process. Bending cables excessively or applying too much force when inserting connectors can damage internal conductors. This can result in intermittent connections or short circuits. Always follow the manufacturer’s recommended bending radius and avoid twisting the cables during installation.
Neglecting proper grounding and shielding is also a frequent oversight. Many custom DIN cables are designed with shielding to protect sensitive signals from electromagnetic interference (EMI). Failing to properly connect the shield can compromise data integrity and lead to performance issues. Make sure that all grounding points are secure and that shielding is continuous throughout the connection path.
Incorrect connector mating is another pitfall. For DIN connector cables, each pin must align correctly with its corresponding socket. Forcing connectors together without checking pin orientation can bend or break pins, requiring costly repairs or replacements. It is advisable to visually inspect and lightly test connectors before fully engaging them.
Finally, improper cable routing can cause long-term reliability problems. Running DIN cable assemblies near high-power lines or sharp edges can induce interference or physical damage. Plan the cable path carefully, use cable ties or clips to secure routing, and maintain adequate separation from potential sources of mechanical stress.
By avoiding these mistakes, you can ensure that DIN connector cables and custom DIN cables operate efficiently and maintain their durability. Proper installation practices not only reduce the risk of failures but also enhance the overall performance of your electronic systems.
